格睿司? 850系列產品工業水泵

格睿司850系列離心泵具備多功能化的設計。憑借其高效的性能、豐富的功能、較長的使用壽命和易于維護等特點，850系列泵成為各種抽水應用的理想之選。

最大流量
  • 874 m3/hr (3,850 gpm)
最大壓頭
  • 131 m (430 ft)
可耐受最高溫度
  • 49°C (120°F)
可選材質
  • 鑄鐵與鋁青銅

產品特性

  • NSF? 50 認證
  • 重型，堅固的設計
  • 法蘭連接，符合ASME B16.1
  • 整體閉式葉輪
  • 后拉式設計，便于維護
  • 兩部件機械密封
  • 鑄鐵流道設計
  • 可更換的無鉛銅耐磨環
  • 耦合型或框架型可選
  • 提供緊密耦合的NEMA電機
  • 框架型可與以下部件連接：電機、發動機、蒸汽輪機或皮帶驅動選件
  • 底座安裝選件
  • 環氧涂層內飾（可選功能）

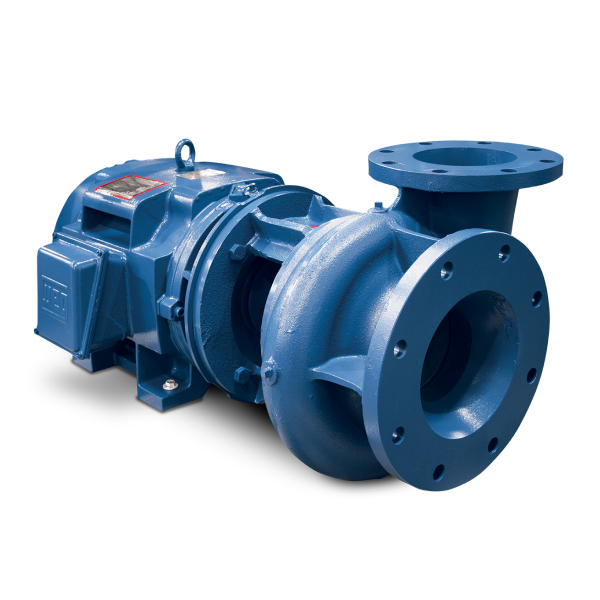

耦合型

1Flanged Iron Casing

The 850 Series iron casing is tapped for a drain, vent and pressure gauge. It includes a suction wear ring and can be rotated to various discharge positions. Standard ASME B16.1 flange-type suction and discharge nozzles facilitate installation and maintenance.

2Renewable Lead-Free Bronze Shaft Sleeve

The renewable lead-free bronze shaft sleeve insulates the shaft from abrasion and contact with pumped liquids.

3Mechanical Shaft Seals

Mechanical shaft seals feature Carbon/Ceramic/Buna-N and Stainless Steel components, eliminating maintenance and adjustment problems.

4Renewable Lead-Free Bronze Wearing Rings

Precision-made lead-free bronze wearing rings are pressed into the casing and/or adapter as required and are renewable, as well as easily replaced in the field.

5Single-Piece Enclosed Impeller

Made of aluminum bronze and keyed to the shaft, the single-piece enclosed impeller is precision balanced with the diameter cut for the specific condition point. On high-head units, the impeller back is drilled for hydraulic balance, limiting thrust load and reducing pressure in the sealing area. Aluminum bronze is a preferred material over stainless steel for its durability and superior corrosive resistance, especially in chlorine applications.

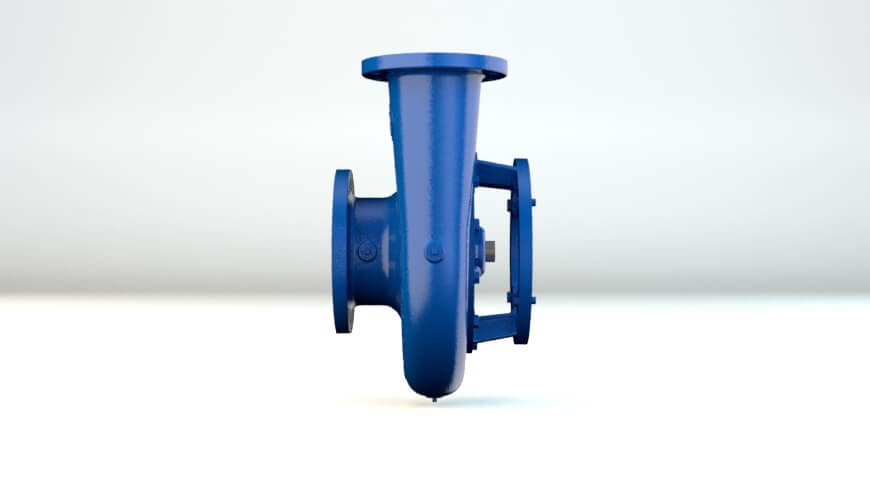

Griswold 850 Series Pump

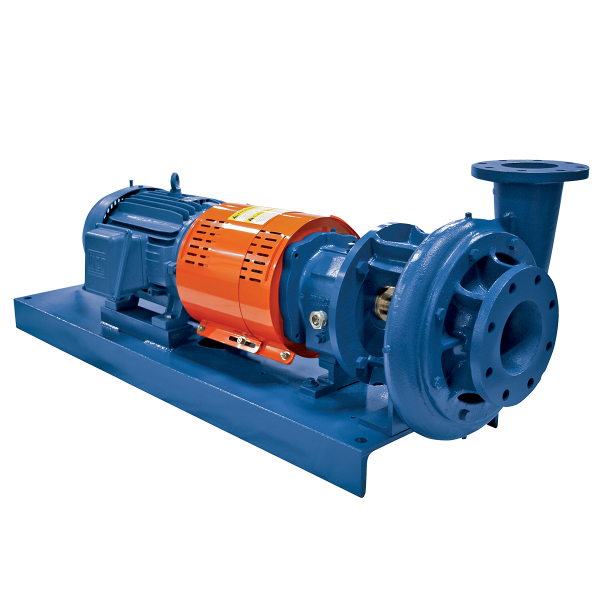

框架型

1Flanged Iron Casing

The 850 Series iron casing is tapped for a drain, vent and pressure gauge. It includes a suction wear ring and can be rotated to various discharge positions. Standard ASME B16.1 flange-type suction and discharge nozzles facilitate installation and maintenance.

2Renewable Lead-Free Bronze Shaft Sleeve

The renewable lead-free bronze shaft sleeve insulates the shaft from abrasion and contact with pumped liquids.

3Mechanical Shaft Seals

Mechanical shaft seals feature Carbon/Ceramic/Buna-N and Stainless Steel components, eliminating maintenance and adjustment problems.

4Renewable Lead-Free Bronze Wearing Rings

Precision-made lead-free bronze wearing rings are pressed into the casing and/or adapter as required and are renewable, as well as easily replaced in the field.

5Single-Piece Enclosed Impeller

Made of aluminum bronze and keyed to the shaft, the single-piece enclosed impeller is precision balanced with the diameter cut for the specific condition point. On high-head units, the impeller back is drilled for hydraulic balance, limiting thrust load and reducing pressure in the sealing area. Aluminum bronze is a preferred material over stainless steel for its durability and superior corrosive resistance, especially in chlorine applications.

6Power Frame

Designed to ASME B73.1 Specification.

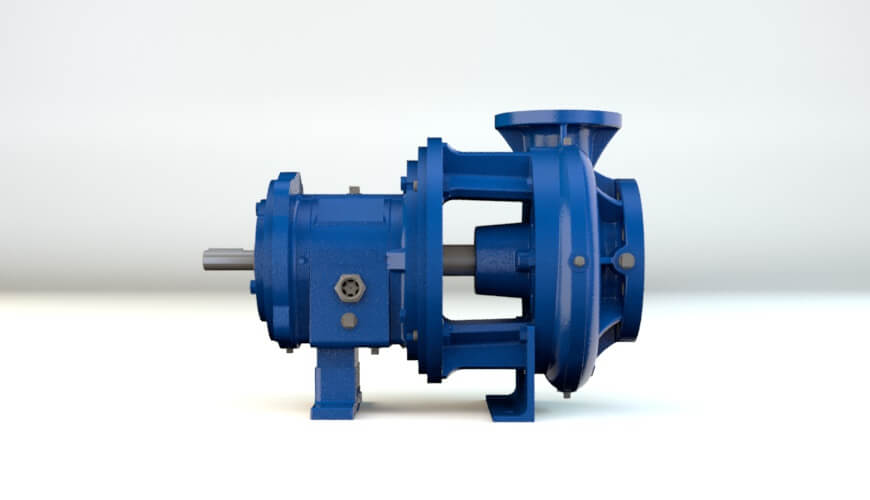

Griswold 850 Series Pump (Frame Mounted)


性能



配件選型

EFG_Configurations

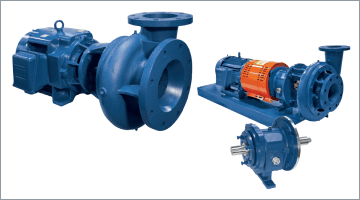

緊密耦合或框架安裝配置

850系列泵隨附NEMA JM或JP耦合電機。作為替代方案，格睿司可為電機提供彈性聯軸器，包括開式防滴型電機、全封閉電機和防爆電機、或發動機、蒸汽輪機和皮帶驅動選件。

EFG_Seal-Options

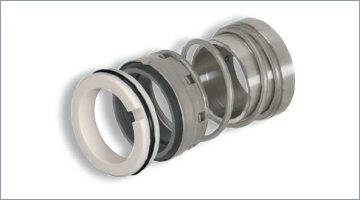

密封選件

雖然我們的標準機械密封由碳/陶瓷/丁腈橡膠組成，但我們還可以為更具研磨性/腐蝕性和高溫應用提供替代方案。

EFG_Mounting-Systems

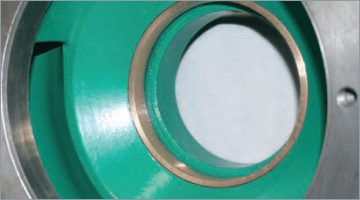

涂層選項和底板安裝系統

為防腐蝕，850系列泵可在內外部涂上3M?Scotchkote?134熔結環氧樹脂。格睿司還提供一整套預加工的槽鋼底板，以減少應力和振動。
