Since 1984, Almatec? has been manufacturing a variety of specialty pumps for supplying and circulating chemicals in the semiconductor industry. With its straight-through flow pattern technology, the Almatec FUTUR Series Air-Operated Double-Diaphragm (AODD) Pump is ideally suited for the special requirements of these applications.
FUTUR Series pumps are self-priming and dry run capable, and feature a compact, simple design with few parts. FUTUR Series pumps have housing parts machined from solid blocks for long-life performance, and are cleaned, assembled and tested in a cleanroom line. For every pump size and material option, the appropriate pulsation damper is available.
The FUTUR is currently available in four materials:
- Four sizes made of PTFE/PE for acids and caustics up to 130°C (266°F) (FUTUR T model)
- Two sizes made of PTFE for hot applications with acids and caustics up to 200°C (392°F) (FUTUR H model)
- Two sizes made of PE for slurries (FUTUR E models)

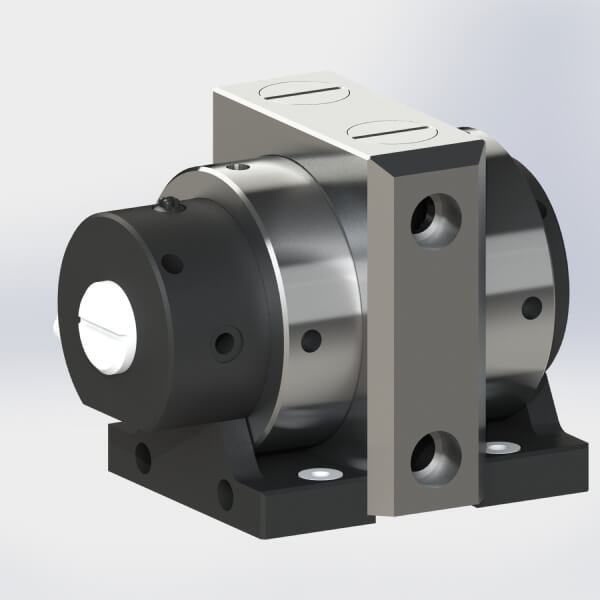

- Two sizes made of SS316L for solvents (FUTUR S and SH models)
